PI-FX SOUND BOARD FOR GOTTLIEB® SYSTEM1, SYSTEM80, 80A PINBALLS
| DESCRIPTION The PI-FX board is a direct replacement board for the sound boards used in the last Gottlieb® System-1 games and the non speech capable sound boards in the System-80/80A games, which used the obsolete 6530 chip:
SYSTEM 1 J- Totem K- Hulk L- Genie N- Buck Rogers P- Torch R- Roller Disco S- Asteroid Annie
| SYSTEM 80 652- Panthera 653- Spiderman 654-Circus 656- Counterforce 657- Star Race 658- James Bond 659- Time Line 661- Force II 664- Pink Panther 667- Volcano (*) 668- Black Hole (*) 671- Eclipse | SYSTEM 80A 670- Devil's Dare (*) 684- Amazon Hunt (+) 685- Rack'em Up 686- Ready Aim Fire 687- Jacks to Open 688- Touchdown 689- Alien Star 691- The Games 692- Eldorado City of Gold 685- Ice Fever
| (*) The PI-FX sound board is only available for export games (non speech board). Click here to view the only sound board type that can be replaced.
(+) The PI-FX sound board is available for most of the versions of this game. Click here to view the only sound board type that can be replaced.
|
![](media/pic/no.png) | ![](media/pic/yes.png) | ![](media/pic/yes.png) | ![](media/pic/no.png) | ![](media/pic/yes.png) |

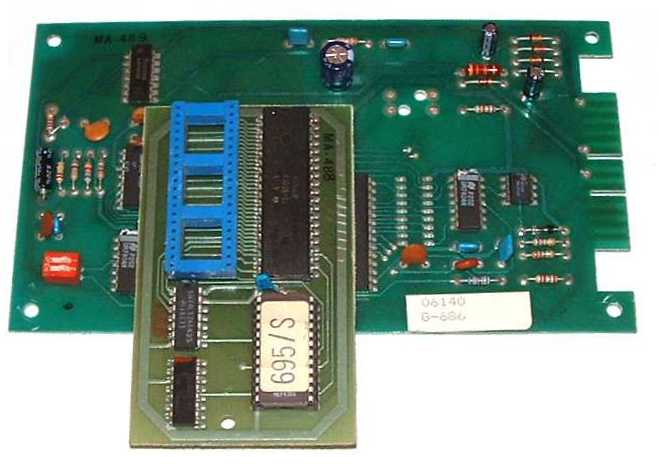

Type 1 | Type 2 | Type 3 | Type 4 | Type 5 |
3-tone sound | Classic sound | Classic sound | Sound and speech | Classic sound |
System-1 | System-1 | System80/80A | System80/80A | System80/80A |
![](media/pic/sound1.png) | ![](media/pic/sound2.png) | ![](media/pic/sound3.png) | ![](media/pic/sound4.png) | ![](media/pic/sound5.png) |
This board runs on a long list of games of the 3 emblematic Gottlieb® series, System-1, System-80 et System-80A, and offers new great features:
- All 3 original sound boards are combined in only one board
- The system, System-1 or System-80/80A, is automatically detected
- More compact, less components, less power consumed and fully hardware protected
- Game and function configuration by switches
- No sound prom needed
- No more exotic and scarce components (like the infamous 6530 chip)
- Advanced features: DEMO pushbutton for all games, door bell mode, etc..
- Stand-alone, fits in the existing connector in the cabinet (System-1) or front head (System-80/80A)
- Simple setup by means of dipswitches, operating LED
- DEMO pushbutton plays any game's sounds in a row!
- Variable playback speed adjustment
